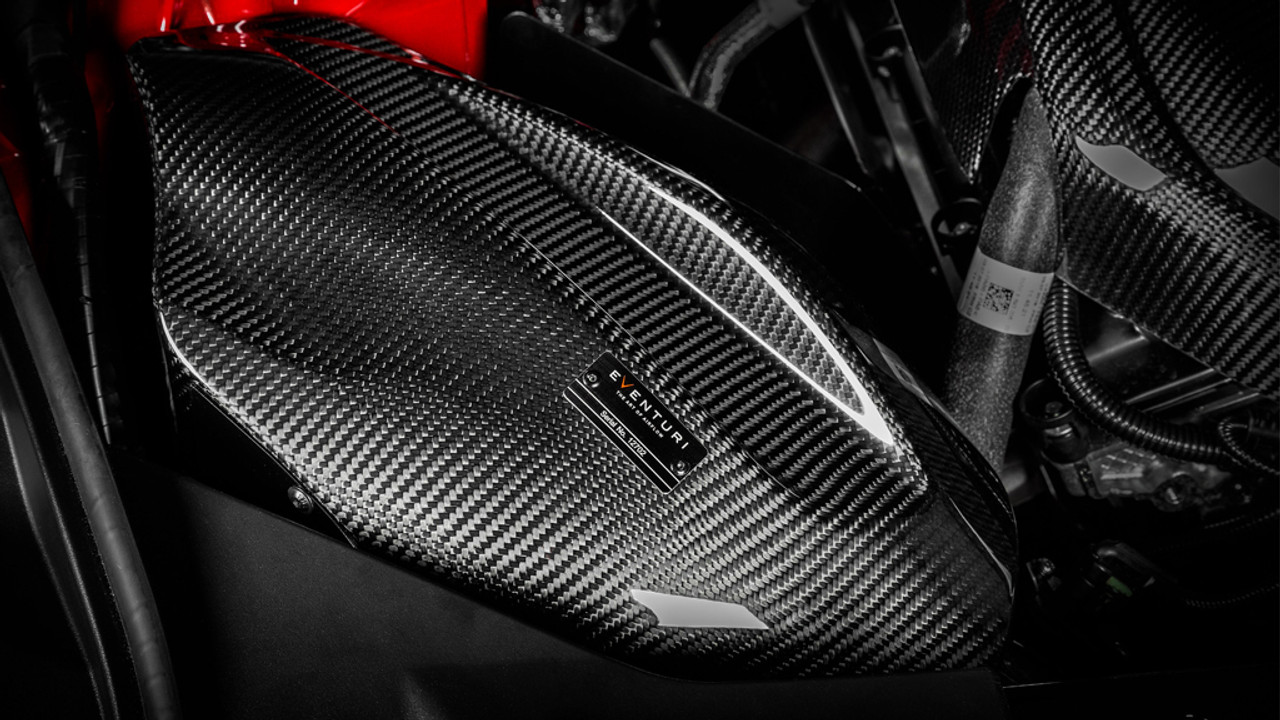

Toyota Supra Black Carbon Fiber Intake - Eventuri EVE-A90-CF-INT
Toyota Supra Black Carbon Fiber Intake - Eventuri EVE-A90-CF-INT

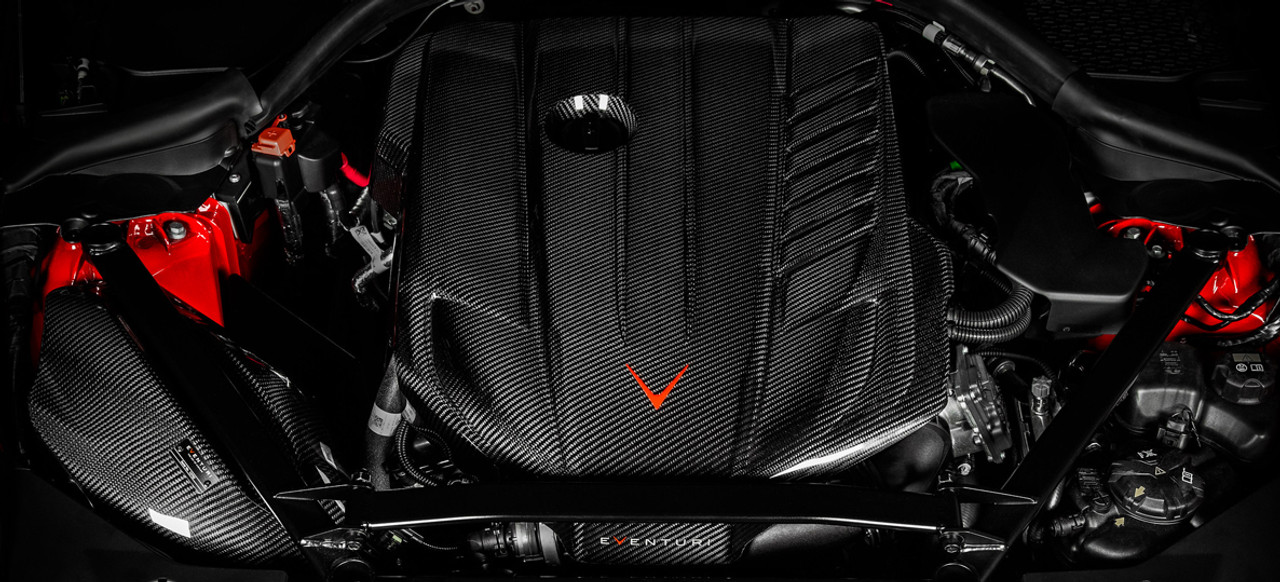

The MK5 Supra Eventuri intake has been developed to provide the turbo with a less restrictive flow path whilst maintaining low inlet temperatures. Heat and Volume are the main considerations when designing an intake for turbocharged engines. In the Supra, the intake system is located next to the exhaust manifold which rapidly heat soaks the engine bay. High temperatures are detrimental for engine performance as the turbo would have to build boost with heated, less dense air and so the only way to ensure IAT’s are kept to a minimum is for a fully sealed intake. This however, results in a restriction with only one stock air feed to draw air in from. During development we noticed an additional opening into the wheel arch area and took advantage of this by adding a secondary feed to our airbox. Furthermore our sealed airbox also has a heat shield with gold reflective to minimise the radiative heat transfer from the exhaust manifold. In order to maximise volume we made the airbox as large as possible with a recess for potential strut braces. The stock convoluted intake tube is replaced with a smooth carbon tube which is also larger in internal volume with a starting internal diameter of 111mm (4.4″) smoothly tapering down to match the turbo inlet. The tube provides a smooth path from the filter to the turbo inlet. Finally we use a custom made high-flow dry filter which is ISO tested for filtration performance and has a larger filtration area than the stock filter.
Each intake system consists of:
- Carbon Fiber Airbox with Dual Feeds
- Bespoke High Flow Dry Cone Filter
- Carbon Fiber Inlet Tube with 111mm opening ID
- CNC Machined Temperature Sensor Mount
- CNC Machined Breather adapter
- Heat Shield with Gold Reflective Backing
- Laser Cut Stainless Steel Brackets
- Silicon Coupler with OEM Specification Clamps
Eventuri was founded by a team of engineers and enthusiasts with a background in Aeronautics and tuning – all sharing a passion for cars and performance. After owning various intakes over many years for our own cars and being disappointed with the gains which seldom lived up to their claims – we decided to take things into our own hands and rewrite the book. To set a new benchmark in intake design and technology, above all – to engineer systems which provide real gains and then to publish genuine figures. Our systems are extensively developed using cutting edge design, testing and prototyping methods. With a focus on performance, each design undergoes CFD analysis and is then validated at the prototype stage through volumetric airflow, intake temperature and extensive dynamometer testing. We strive to publish all the development information to illustrate the depths we go to in bringing an intake from concept to reality. Only the best materials are selected for each component – even down to the choice of fasteners and fixings in order to ensure that the quality of the end product is second to none. After many years of disappointment with the usual aftermarket intakes, we are proud to be raising the bar and creating intake systems which are setting a new standard and genuinely improve the performance of your vehicle.
